製袋機 BAG MAKING MACHINE
首頁 > 產品目錄 > 製袋機 BAG MAKING MACHINE > MODEL: IDL-81300-A / 2 needles 4 threads jumbo bag making machine with top feed

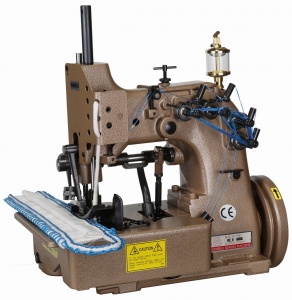

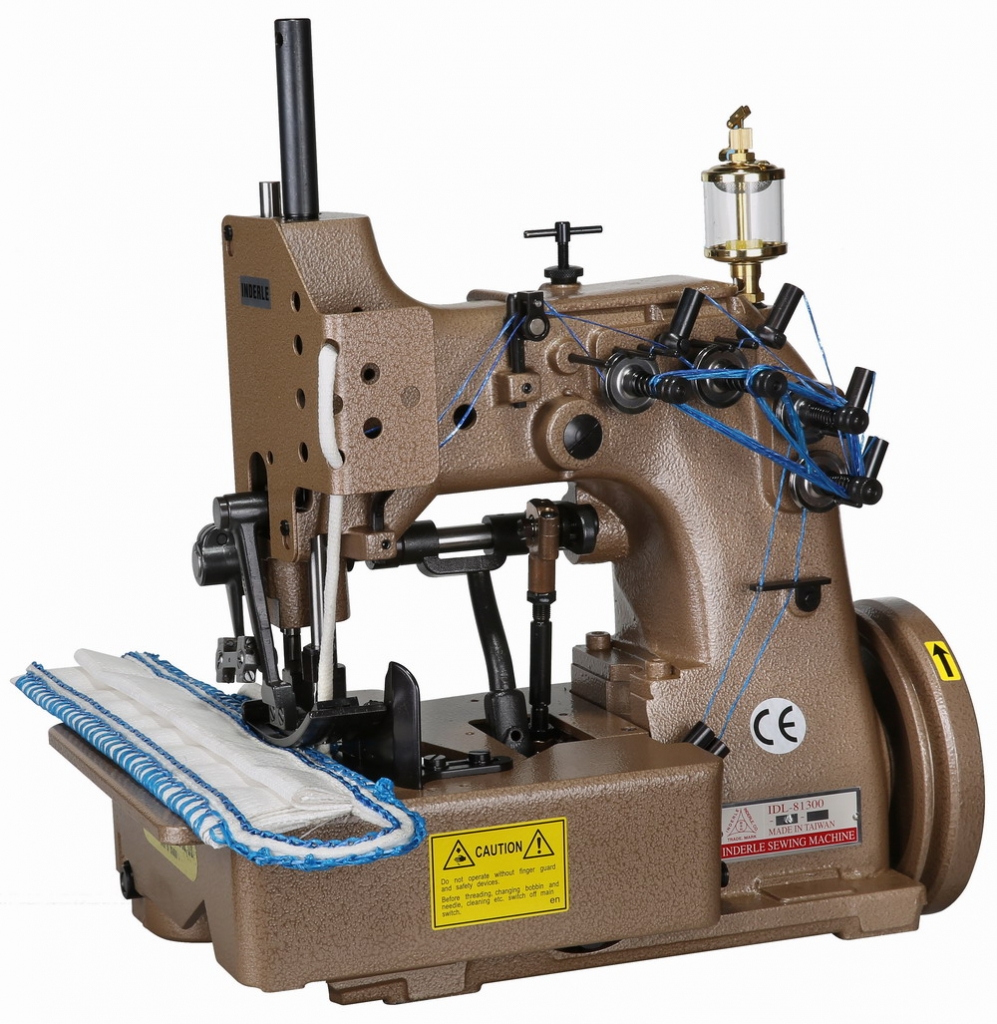

MODEL: IDL-81300-A / 2 needles 4 threads jumbo bag making machine with top feed
2针4线集装袋、太空袋、编织袋制袋机
2 Needles 4 Threads Jumbo Bag Making Sewing Machine / with top feeding /
Trade Description
產品特色
IDL-81300-A 是2针4线制袋机, 适用于生产塑料编织袋、集装袋、太空包…等工序。
本机采用上下同步送料之结构并将锁炼缝与包边缝等二道工序合成一道工序同步完成, 大大缩减了制程的时间。
本机可于锁炼缝处上下加缝防漏棉绳, 除防止填充物泄漏外也可加强缝合处的牢固度。
＊可选购气动押脚提升器、热切刀系统、专用工作台、专用线架
IDL-81300-A is safety stitch and overedge stitch machine with top and bottom feed for matched seams on heavy container bags. Equipped with guides for filler cord from the top or from the below for sealing the needle punctures of the left needle.
＊Air foot lifting device、hot cutter device、work table and special thread stander are on request.
============================================================
選購配件 / OPTIONAL ATTACHMENT
============================================================
============================================================
線架 / YARN STANDER
============================================================
============================================================
氣動押腳提升氣缸組 / PNEUMATIC PRESSER FOOT
============================================================
=============================================================
熱切刀 / HOT CUTTER
=============================================================
============================================================
機針冷卻裝置 / NEEDLE COOLING
============================================================
=============================================================
專用腳架 / SINGLE LEG STANDER
=============================================================
產品描述
转速 / Speed : 1400 r.p.m.
针 / Needle : 2
线 / Thread : 4
针幅 / Needle Distance :
针距 / Stitch Range : 6.3-13 mm
包边宽度 / Seam Width :
厚度 / Thickness : 19 mm
