產品特色

IDL-70 系列是专为印花与染整工序所设计的接布机，使用易拆线的单线设计与布料展开时不重迭的特宽接布面设计。机型轻巧、穿线结构简单，更适装设于轨道式自动化接布机。

IDL-70 series is made for joining temporally the abutted edges of piece goods for processing in bleaching, dyeing and printing factories. Single thread (easy remove stitch) and butted - end sewing is performed accurately without overlapping fabric.

**** It is easy to set up on automatic butted seam workstation. ****

MODEL TYPE :

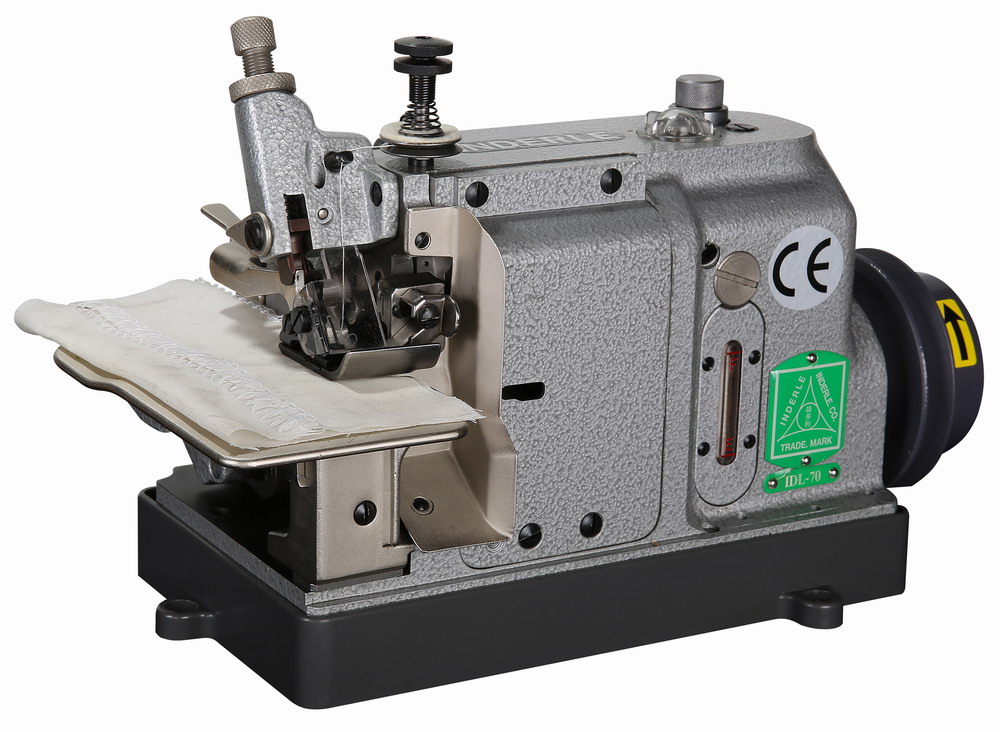

IDL-70 / 1 thread flat butted seam ( fabric joining ) sewing machine

IDL-70W / 1 thread flat butted seam (more width) (fabric joining ) sewing machine

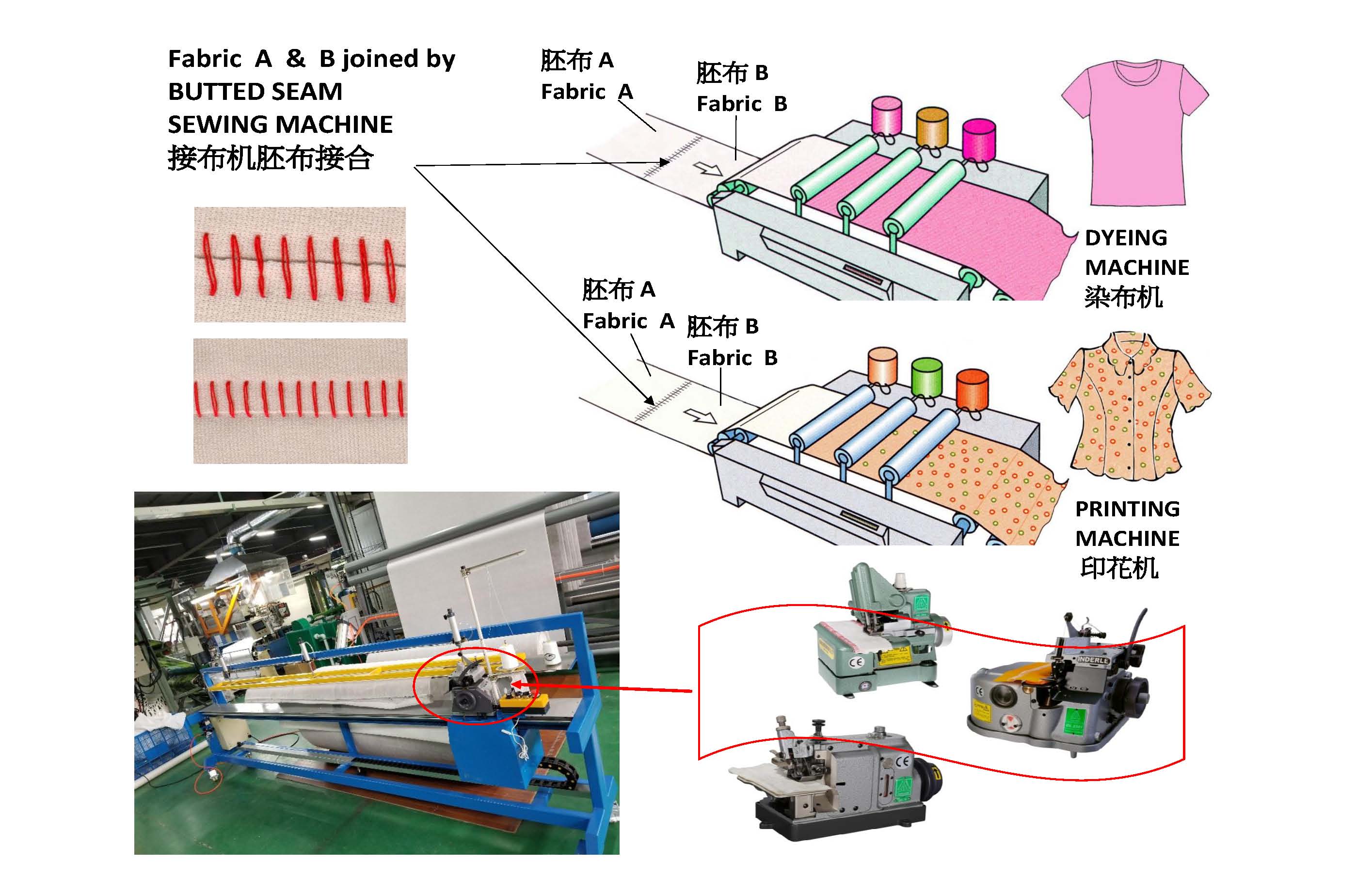

印花染整接布機之應用與加工程序

Application of butted seam sewing machine for fabric printing and dyeing process

產品描述

转速 / Speed : 2,250 r.p.m.

针 / Needle : 1

线 / Thread : 1

针距 / Stitch Range : 2.1-6.3 mm

拼接宽度 / Seam Width : 15 mm
